APS 0109

Zero Position Controller

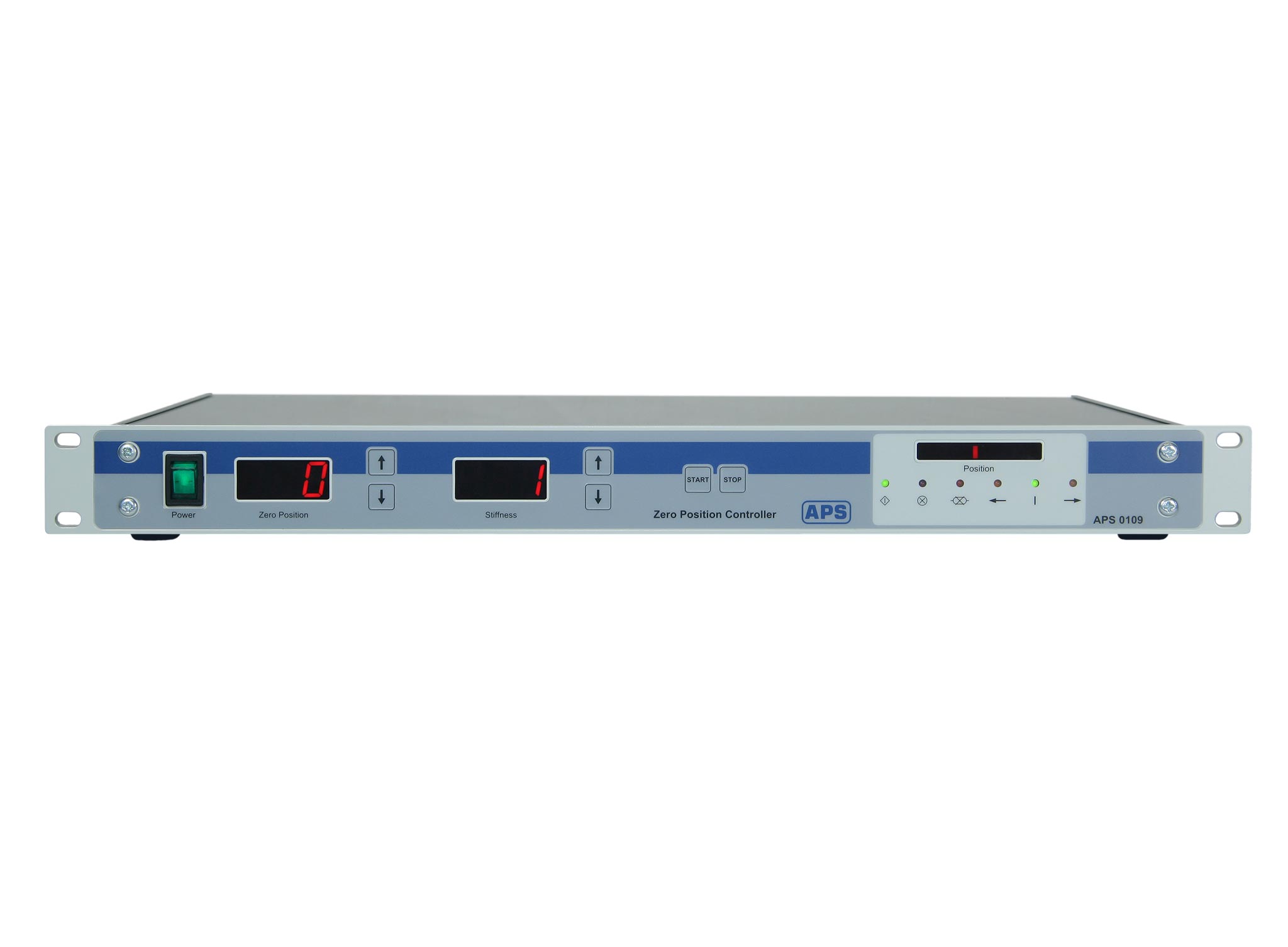

The APS 0109 automatically controls the zero position of a vibration exciter irrespective of its load. It is essential to employ a position controller of type APS 0109 especially when working with an air-bearing vibration shaker without any integrated automatic load-compensation.

Datasheet

Key Features

Features

For use on vibration exciters operating in horizontal and vertical directions
Monitoring of vibration displacement for exceedance of maximum displacement
Indicator of zero position
Set up of certain load independent zero positions

Monitoring of air pressure in air bearing vibration exciters
Monitoring of Amplifier
Modular structure allows system configuration to customer's demands

Applications

Zero position control of vibration exciters used in vibration testing and in calibration systems

Range of use

Calibration laboratories for vibration measuring equipment
Environmental test laboratories using vibration test equipment

Product details

Zero Position Controller for APS Long-Stroke Vibration Exciter

_{For further details, please refer to the technical data sheet. Subject to change without notice.}
