APS Steel Cable Kit

Required to use the shaker in "Free Body Mode"

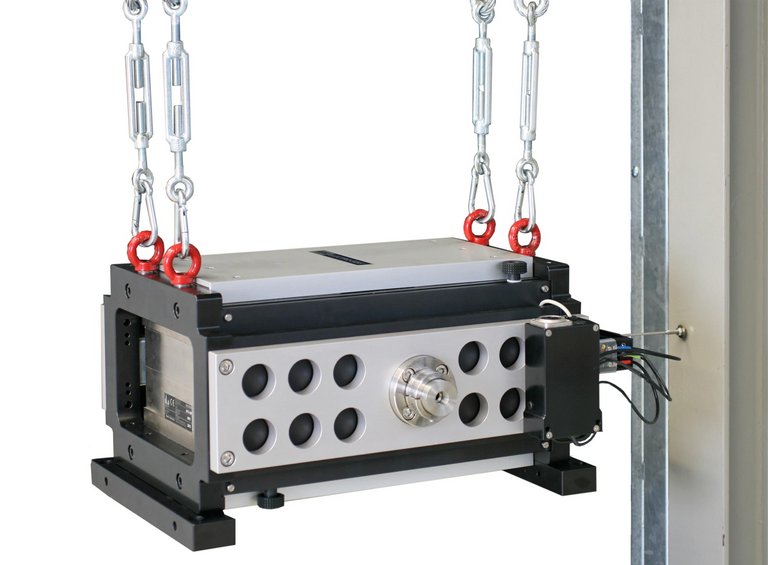

The APS steel cable kit enables operation in “Free Body Mode,” allowing the shaker body itself to act as the reaction mass for efficient force transmission to the test structure.

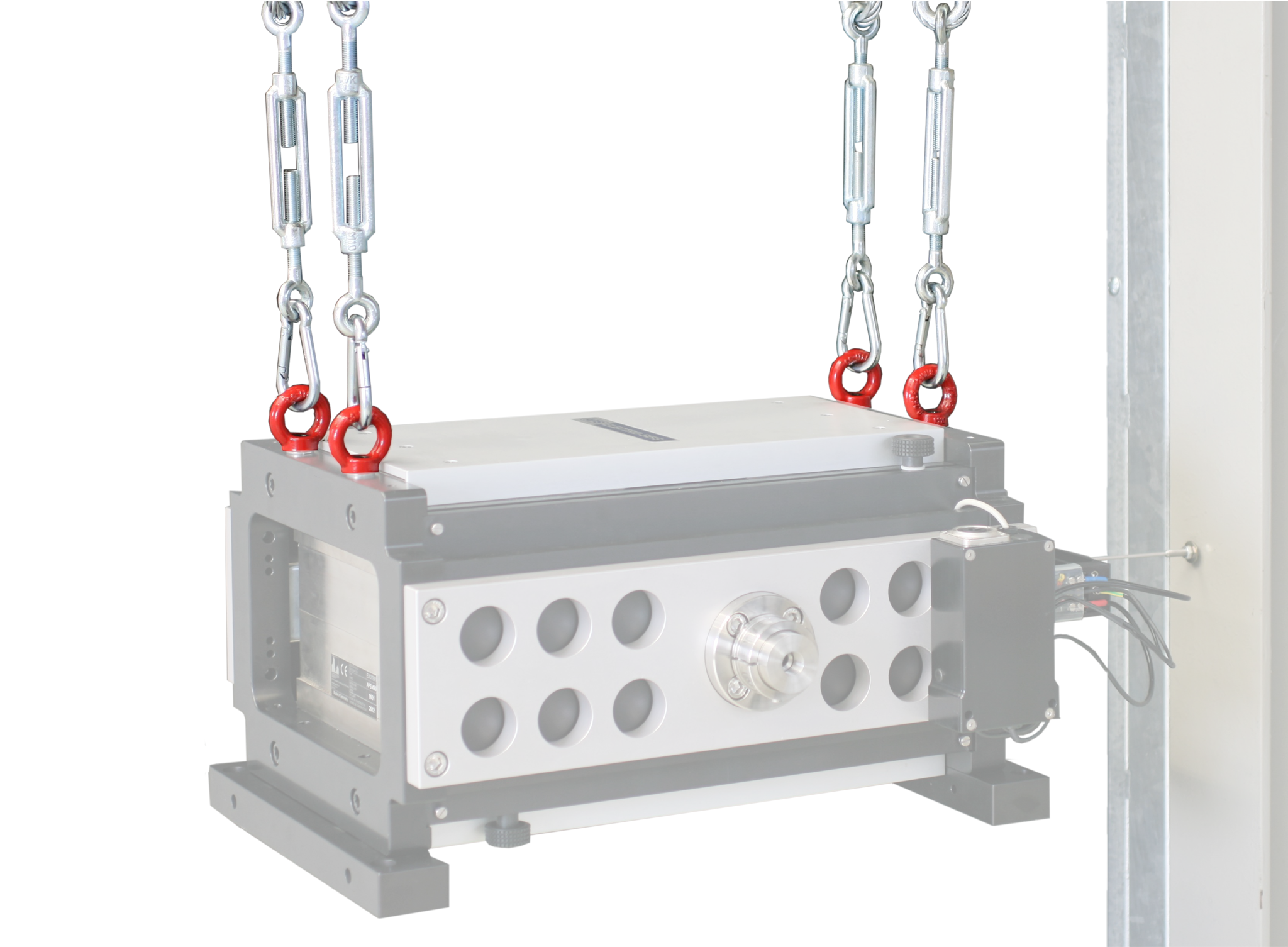

By suspending the shaker above ground with robust suspension lines, it provides a flexible and convenient setup for applying force parallel to horizontal surfaces. Compatible with APS 113, APS 113-AB, APS 400 and APS 420 exciters, the kit includes four sets of suspension lines for stable operation. For optimal force transfer to the test structure, it can be combined with a modal stinger kit.

Product details

available for APS 113, APS 113-AB, APS 400, APS 420

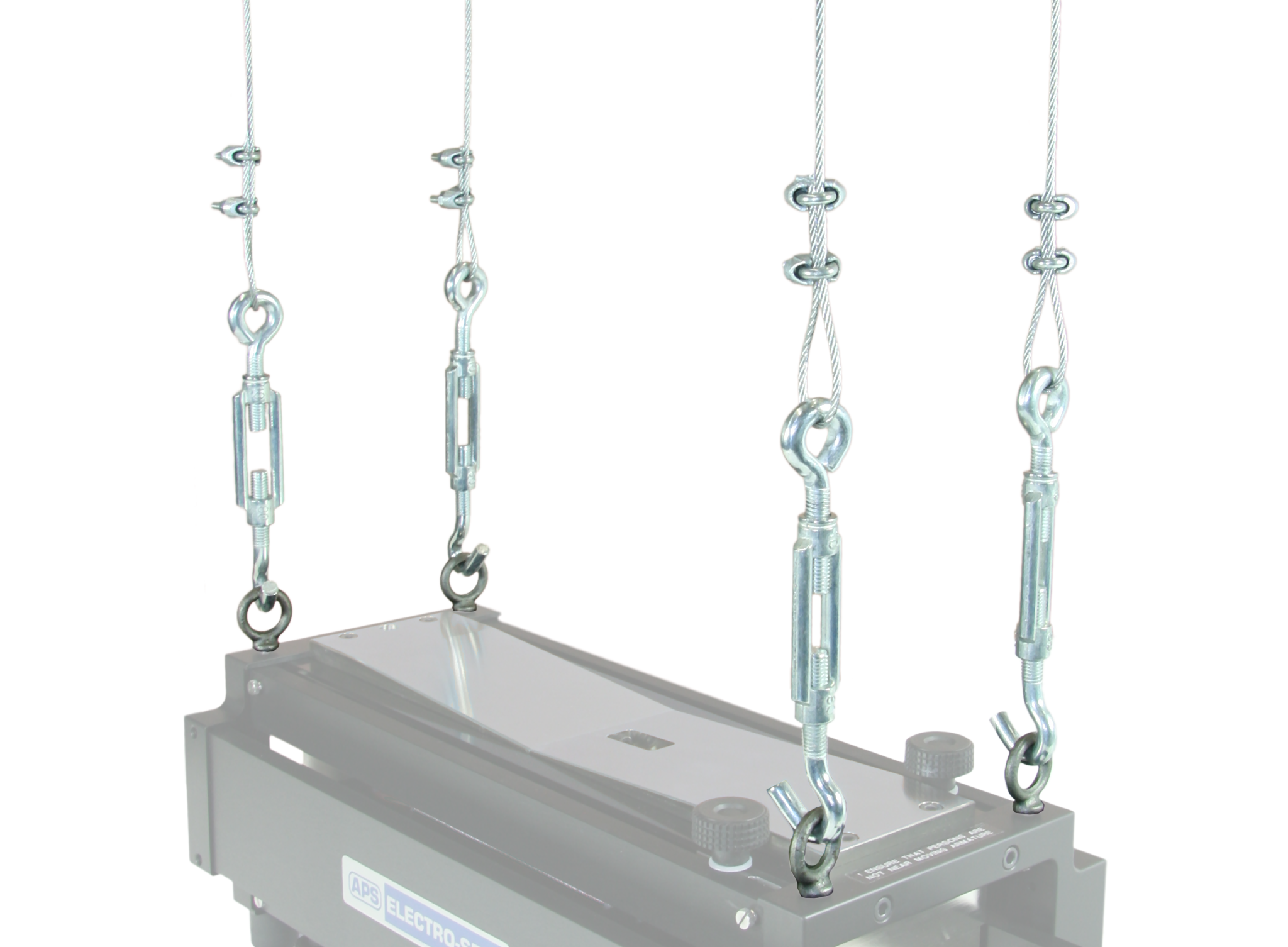

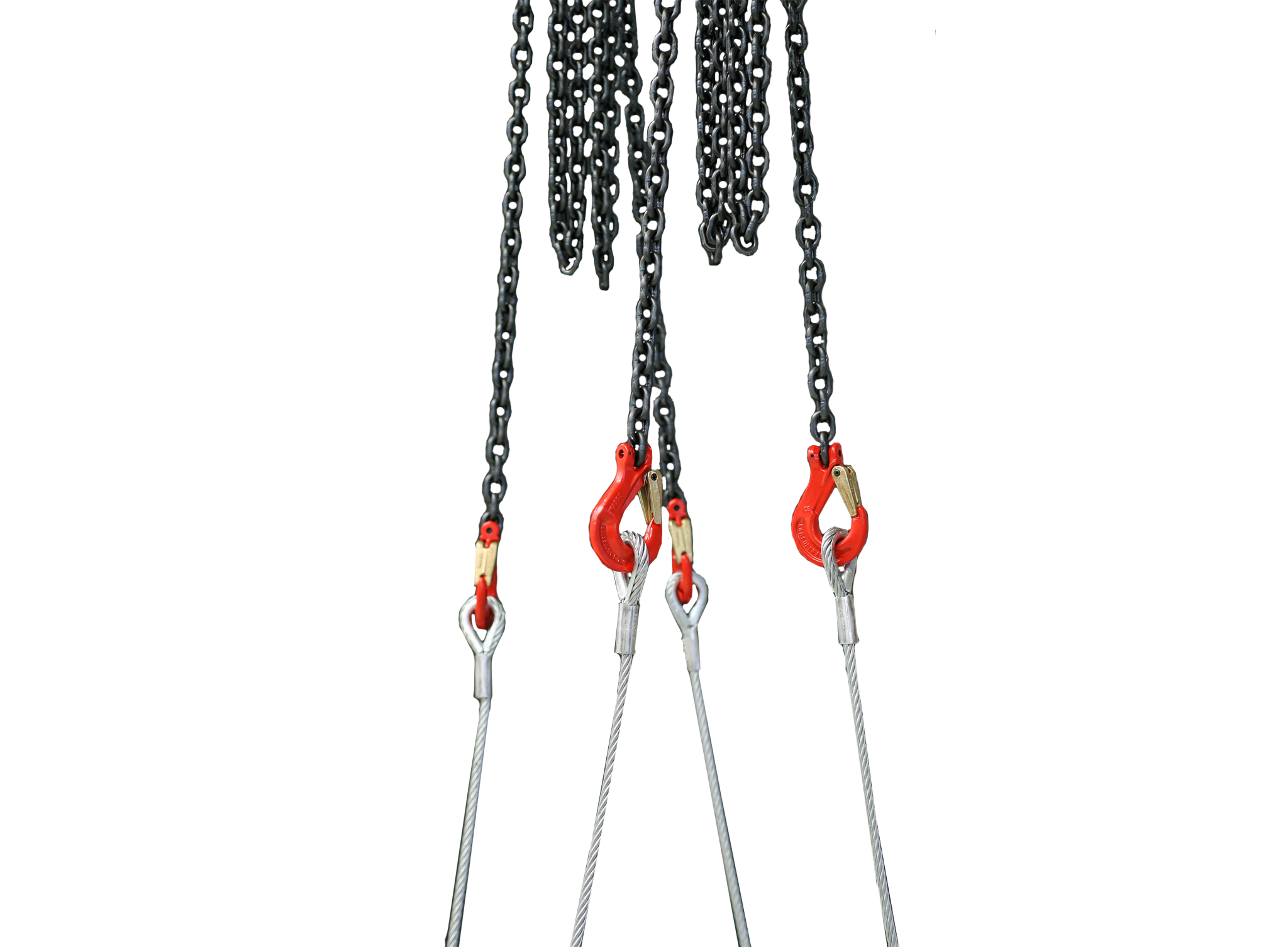

provides four sets of suspension lines to use the shaker in “Free Body Mode”
for attaching the shaker armature to a test structure, use the Modal Stinger Kit

_{For further details, please refer to the technical data sheet. Subject to change without notice.}
