APS Reaction Mass

improves performance of the shaker

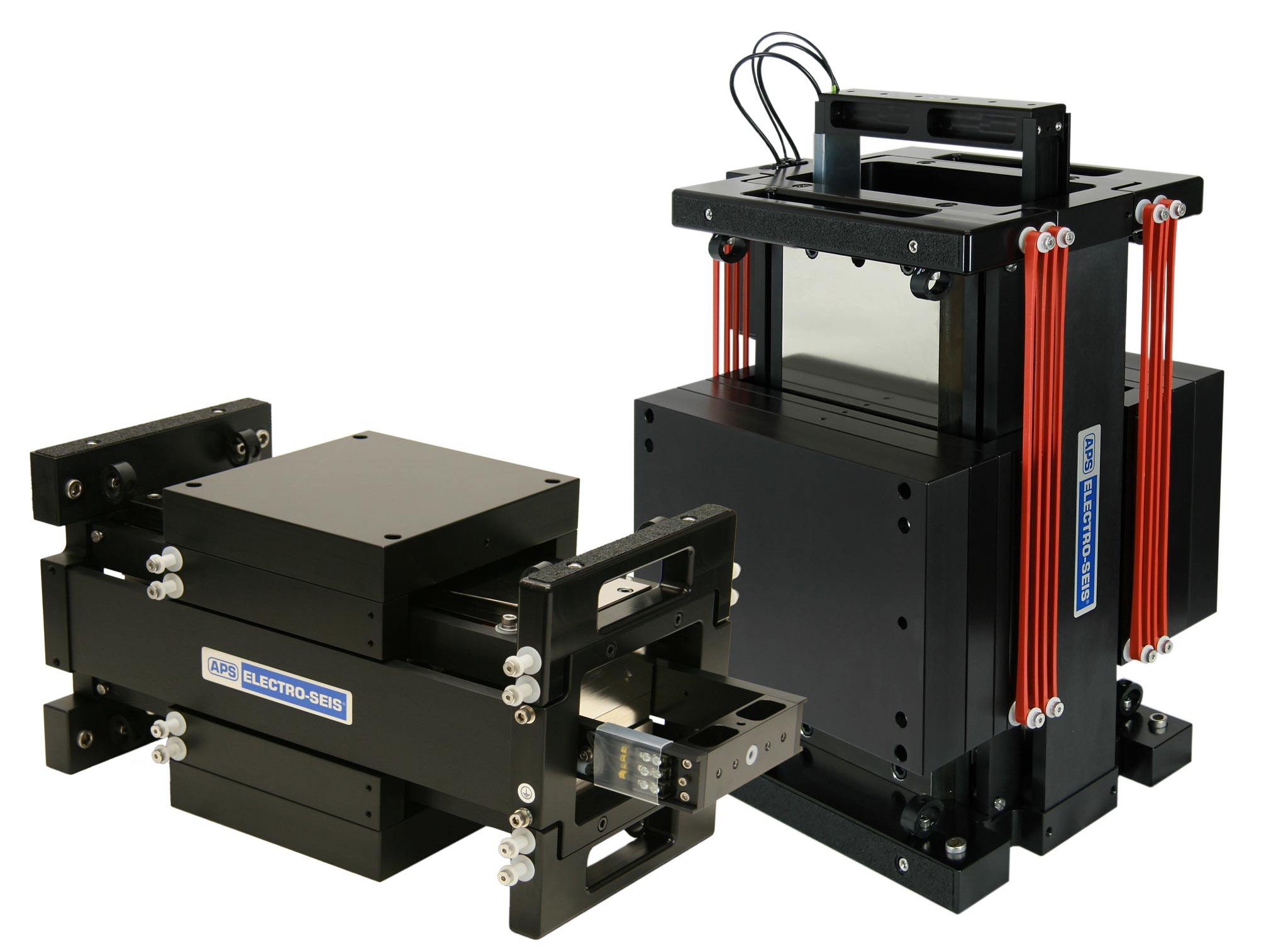

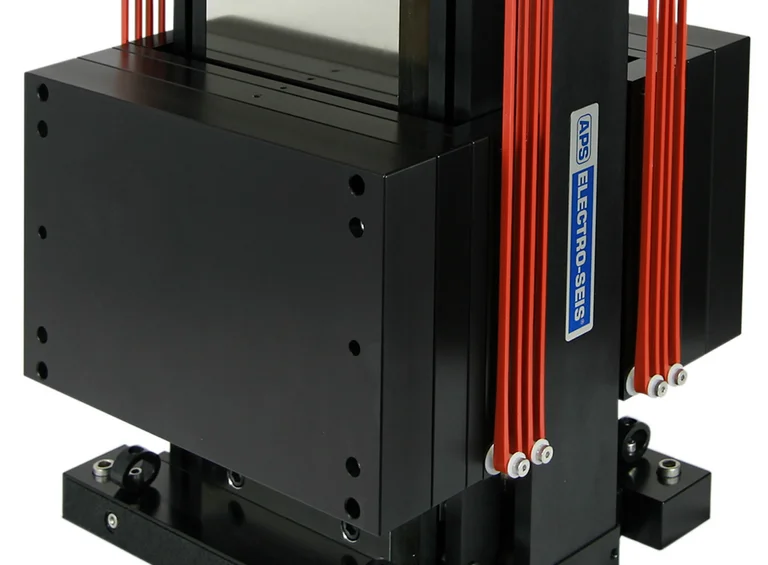

Reaction masses for APS exciters — compatible with models APS 113, APS 400 and APS 420 — extend performance into lower frequency ranges while allowing either horizontal or vertical force to be applied directly through the shaker body.

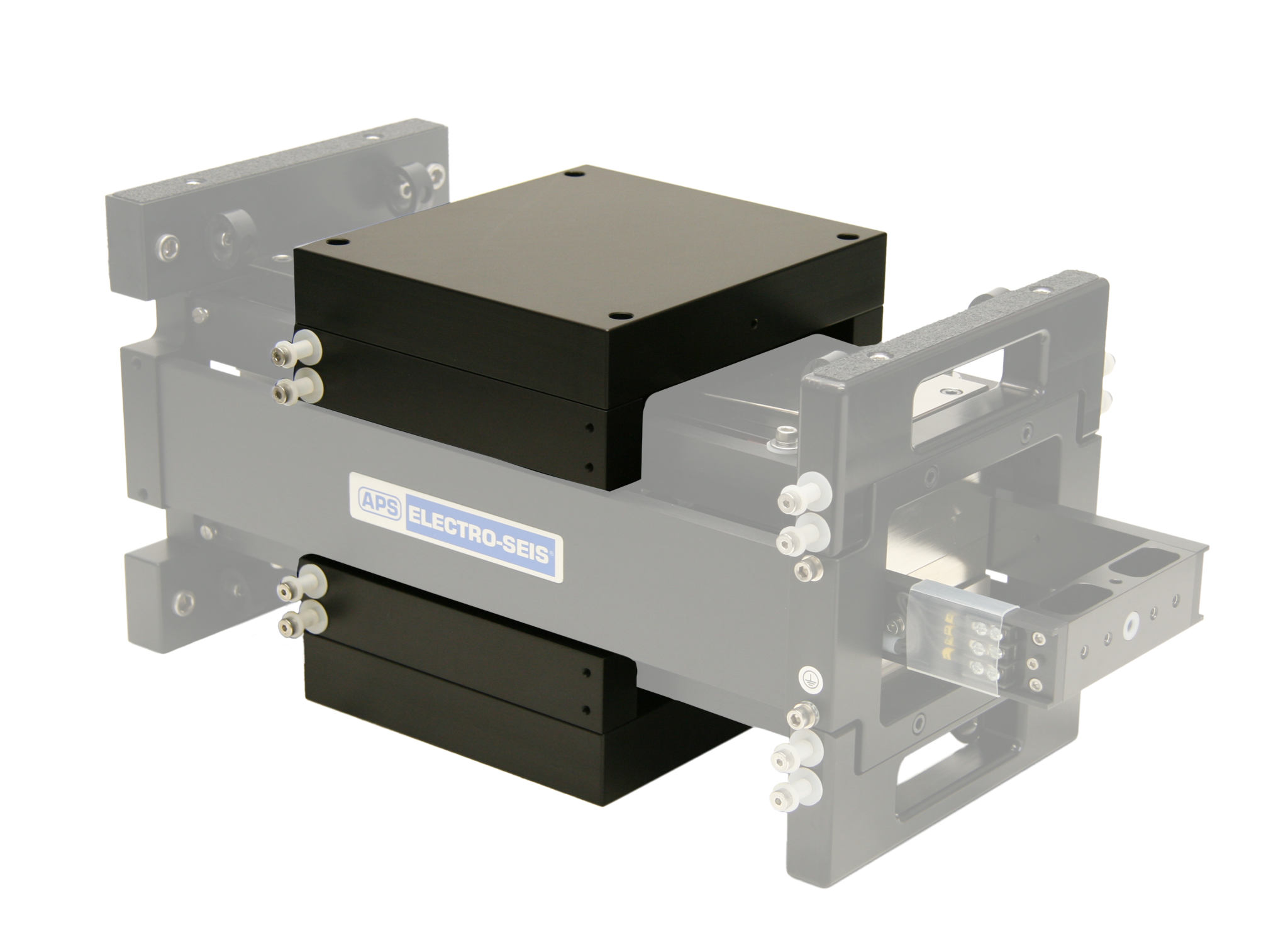

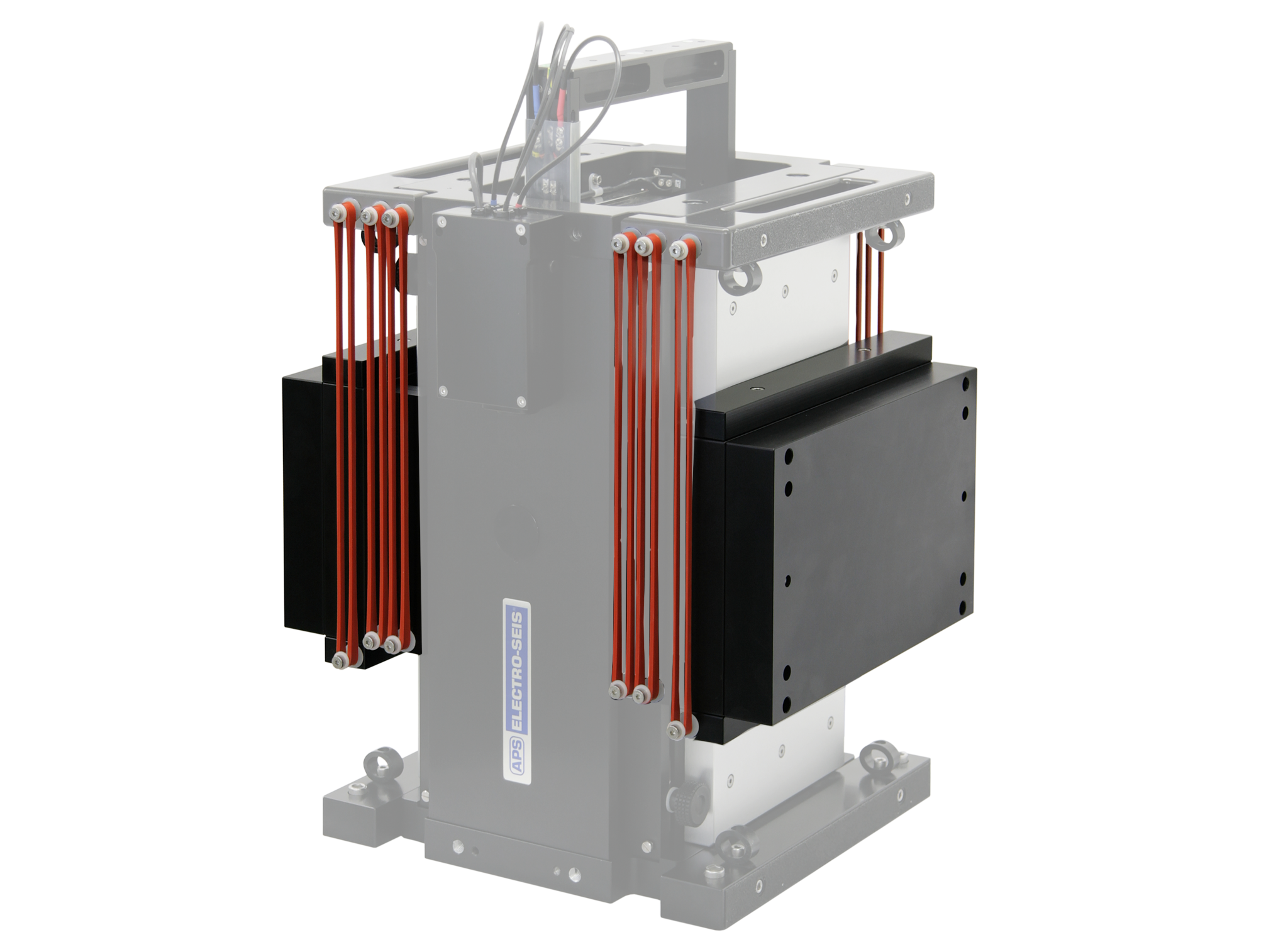

With an armature weight of 13.2 kg (29 lb) and a total system weight of 47 kg (103 lb), they provide the stability and inertia needed for precise, controlled excitation. Using two blocks, sufficient reaction mass is achieved to deliver the rated force down to 1.8 Hz, even in free body mode.

Product details

Available for APS 113, APS 400, APS 420 to
Armature weight including Reaction Mass: 13.2 kg (29 lb)
Minimum frequency for 30 lb Force: 1.8 Hz
Total shaker weight including Reaction Mass: 47 kg (103 lb)*

*_{sample shaker APS 113}

_{For further details, please refer to the technical data sheet. Subject to change without notice.}
