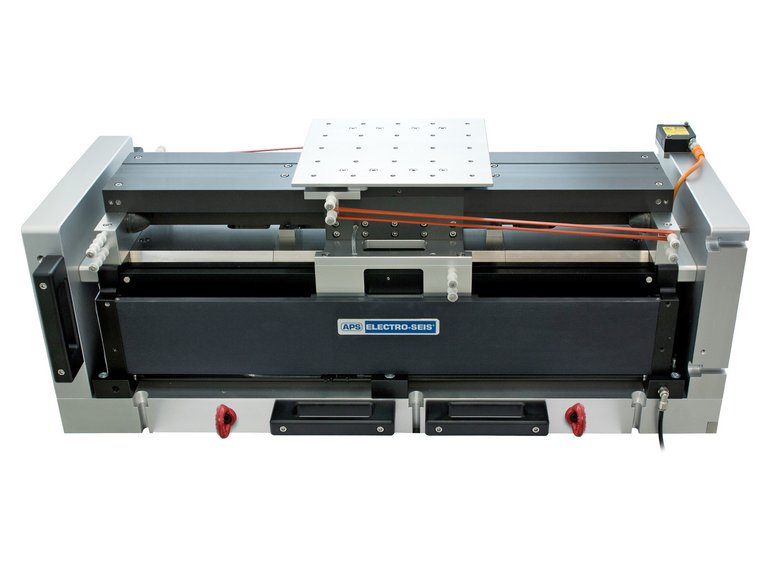

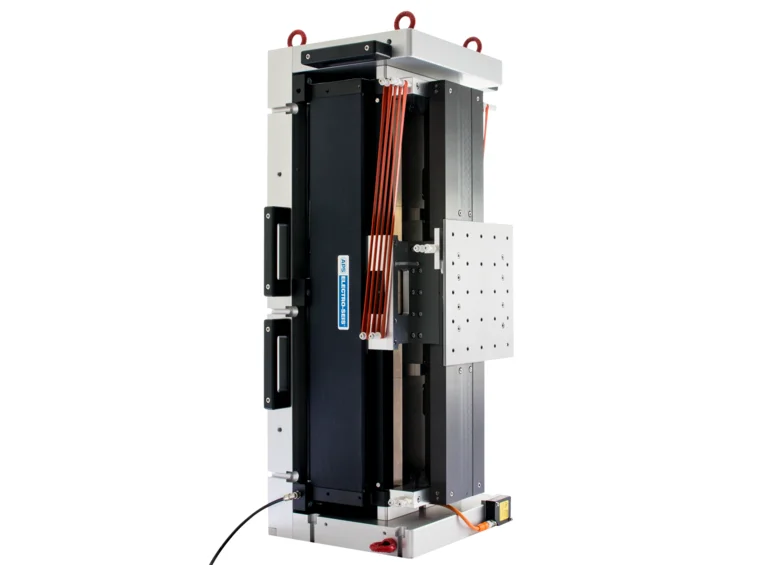

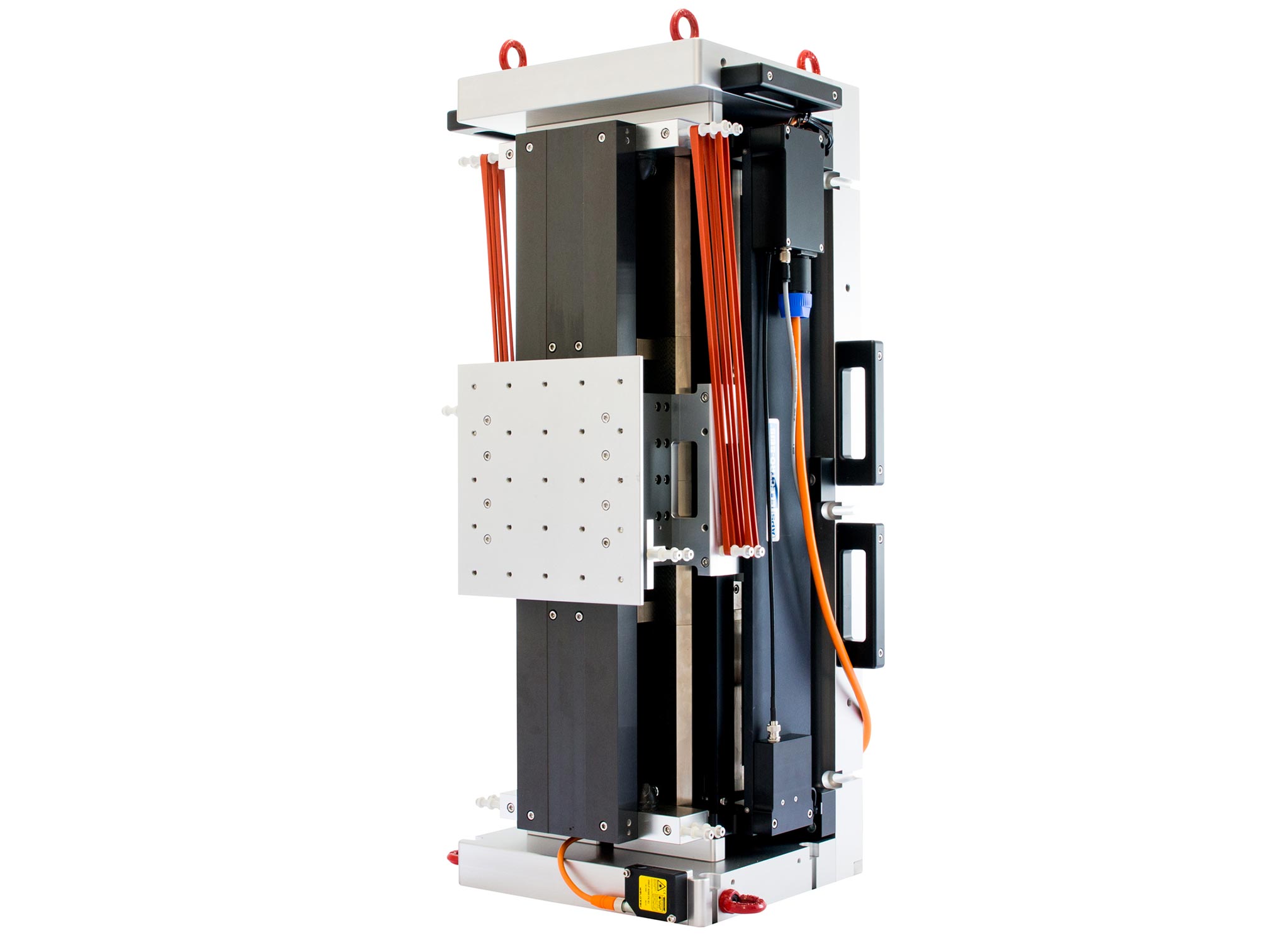

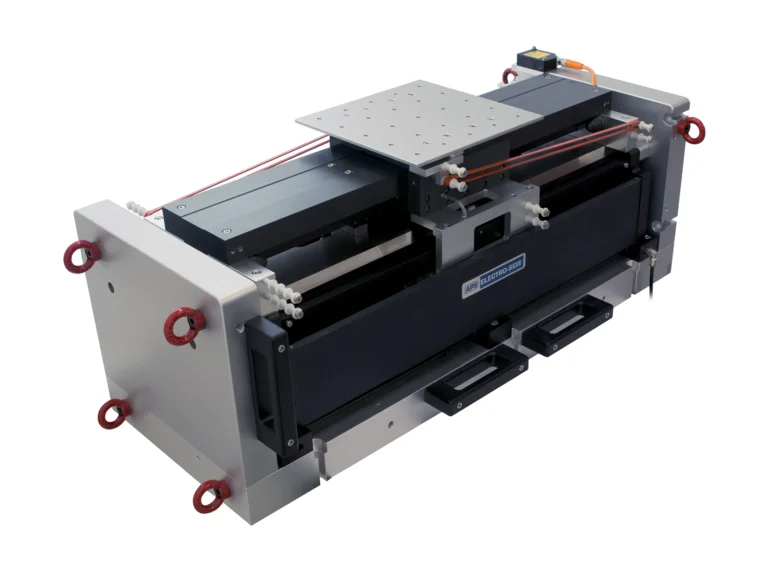

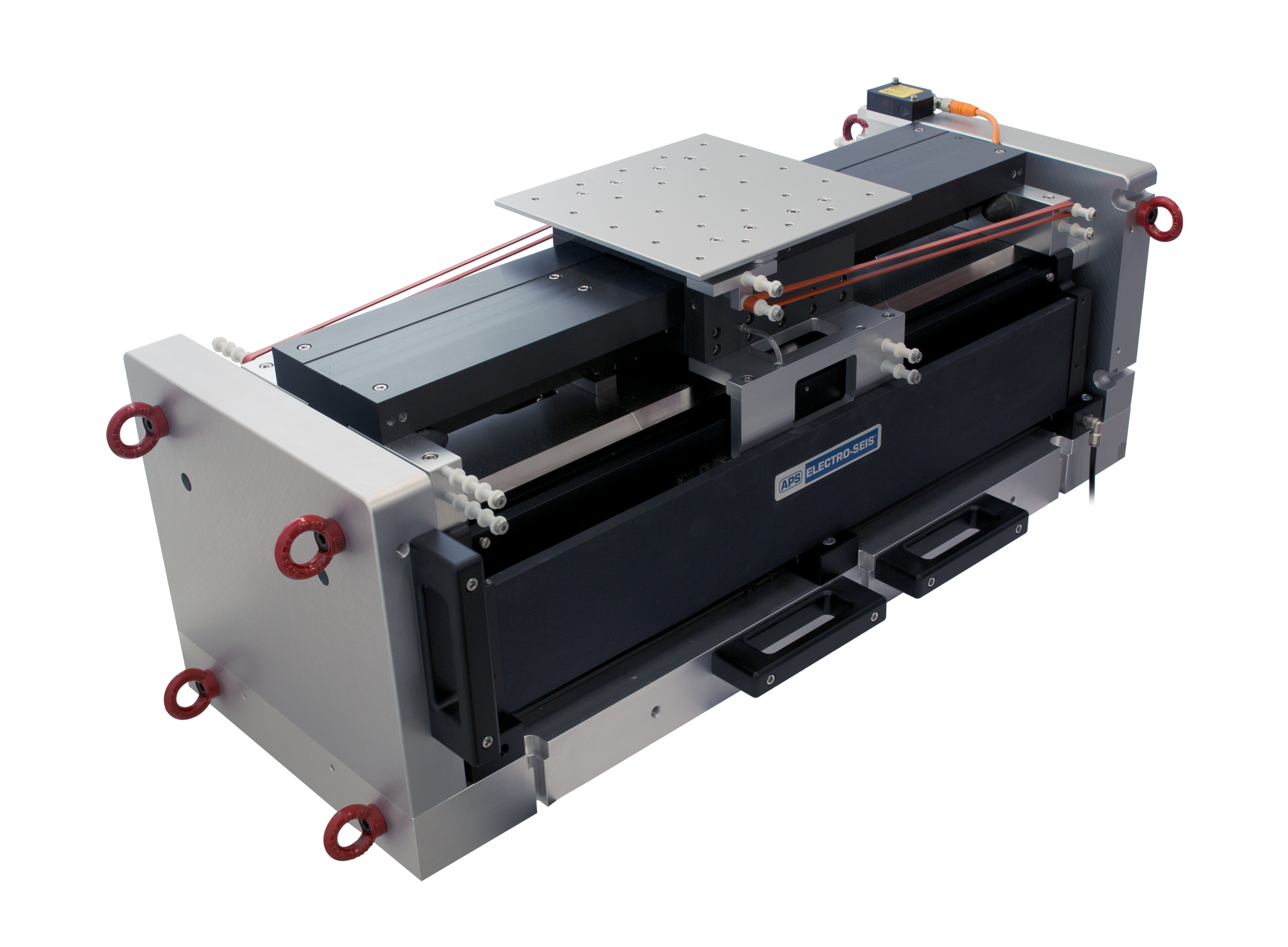

APS 600
Air-bearing ELECTRO-SEIS® Long Stroke vibration exciter with mounting table for very high payloads. Especially developed for the calibration and testing of geophones and heavy seismic sensors.
Product details
Technical data
- Frequency Range: DC...50 Hz
- Operation: horizontal
Accessories (optional)
- Power amplifier
- Zero position controller
- System cables
For further details, please refer to the technical data sheet. Subject to change without notice.
Performance
Test loads of up to 25 kg (55 lbs) can be driven to acceleration levels typical of those found in seismic specifications. Typical performance diagrams of the APS 600 shaker with the PA 500 DM power amplifier are exemplified in the graphs below. These diagrams represent the maximum acceleration for various payloads that can be achieved on the table.
Acceleration with various mass loads
PA 500 DM
For all vibration exciters that require a 500 VA power amplifier (load impedance 4 Ω). The PA 500 DM offers a max. frequency range DC...200 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.
APS 0109
The APS 0109 automatically controls the zero position of a vibration exciter irrespective of its load. It is essential to employ a position controller of type APS 0109 especially when working with an air-bearing vibration shaker without any integrated automatic load-compensation.
