APS 129

Air-bearing Long Stroke Vibration Exciter

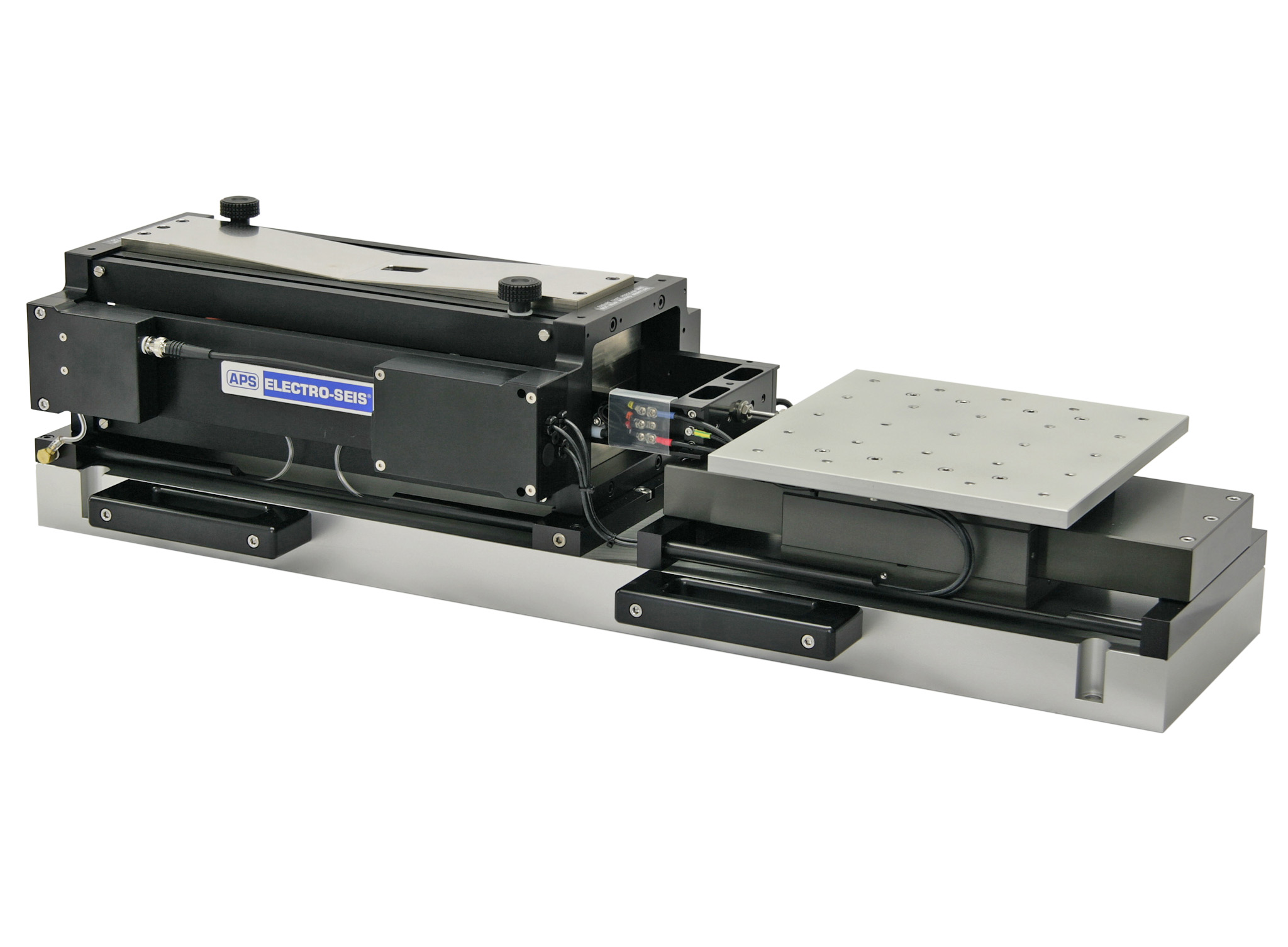

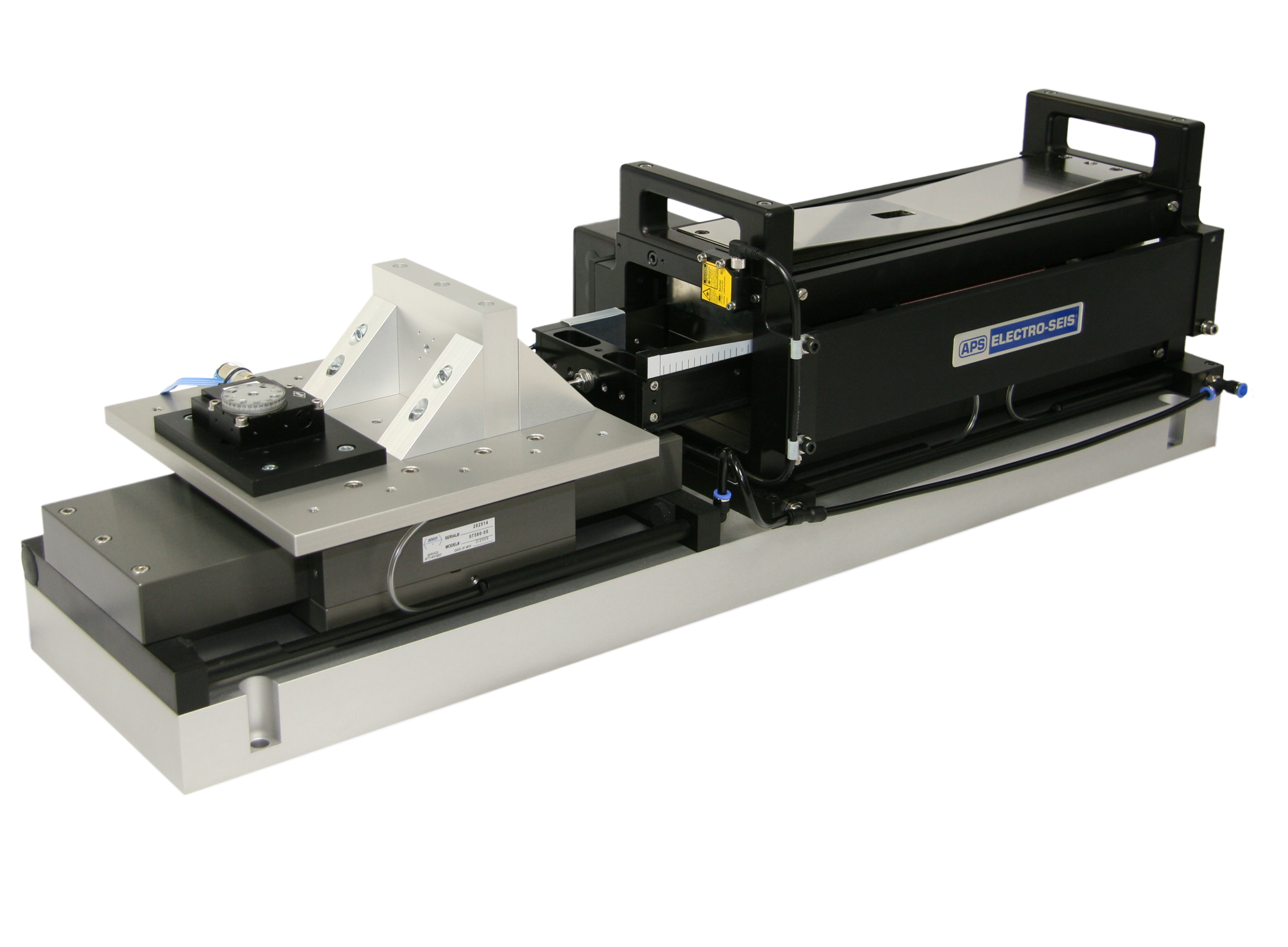

Air-bearing ELECTRO-SEIS® Long Stroke Vibration Exciter with mounting table for high payloads up to 23 kg. Especially developed for the calibration and testing of big and heavy low frequency sensors as well as for sensor characterization (e.g. geophones or heavy seismic sensors).

Datasheet

Key Features

Applications

calibration and test for seismic instruments like geophones and heavy seismic sensors
seismic simulation for components

Range of use

geological services, science, physics and seismic applications
calibration and evaluation of accelerometers and other motion transducers

Features

133 N (30 lbf) or 186 N (42 lbf) force (sine peak)

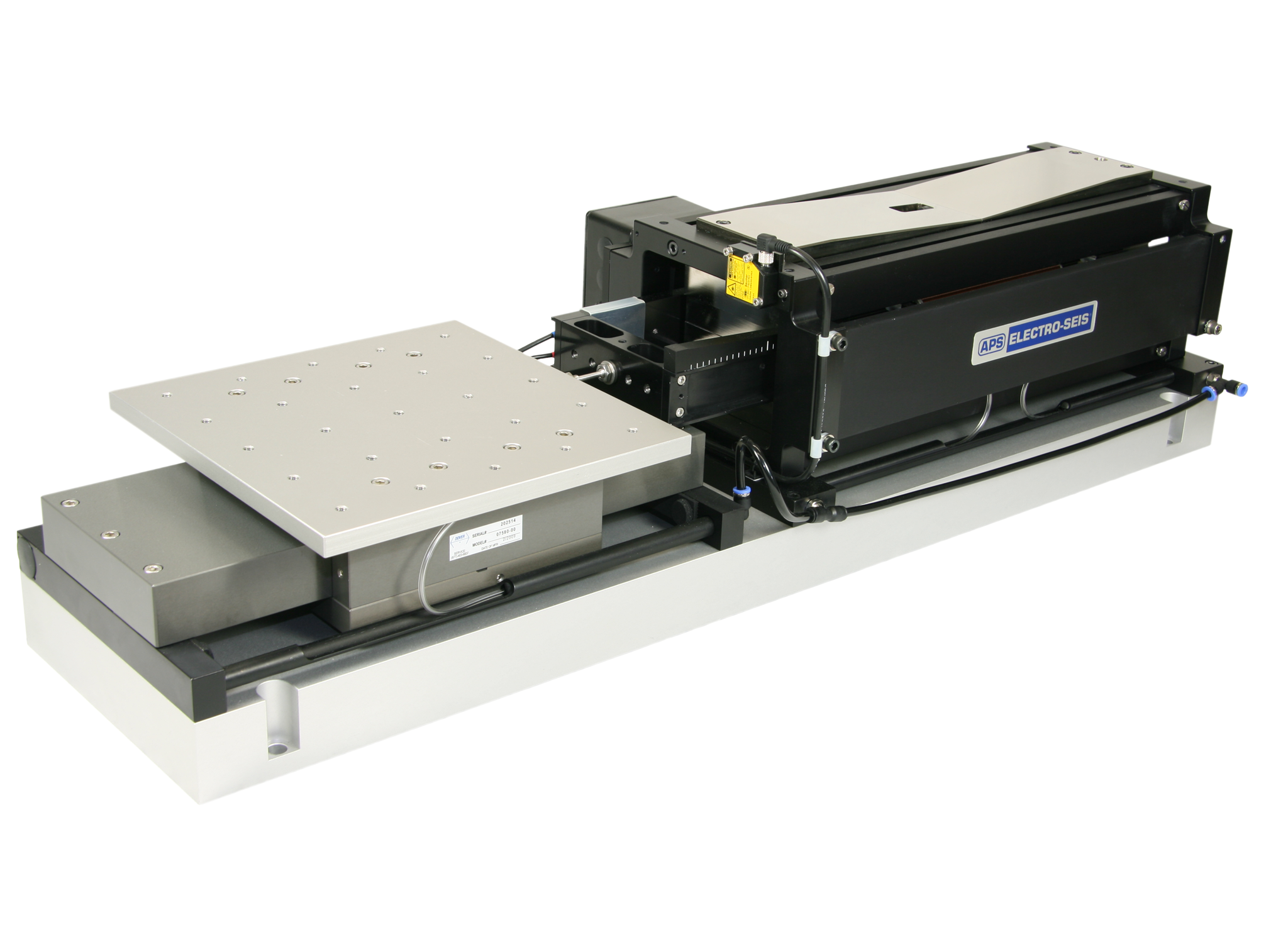

254 mm x 254 mm (10 in x 10 in) air bearing table
excellent waveform purity

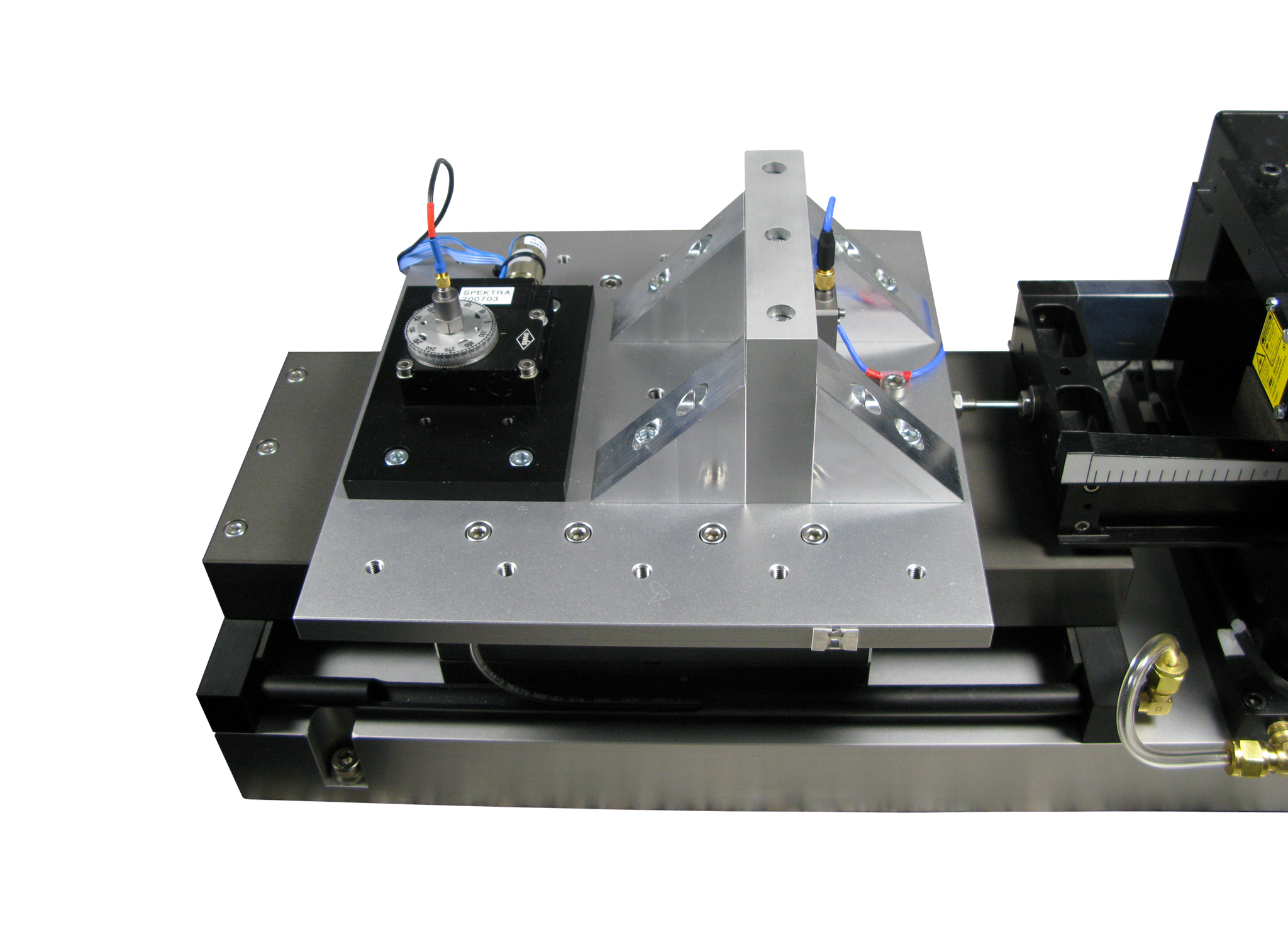

air bearing guidance and support system carries DUTs up to 23 kg (50 lbs) with very low transverse motion
efficient electrodynamic drive produces sine, random or transient waveforms

Product details

Displacement, max.: 158 mm (peak-peak)
Frequency Range: DC…200 Hz
very low cross-axis motion

_{For further details, please refer to the technical data sheet. Subject to change without notice.}

Performance

Devices under test (DUTs) of up to 23 kg (50 lbs) can be driven to acceleration levels typical of those found in seismic specifications. Performance envelopes of the APS 129 shaker with the PA 500 DM power amplifier are given in the diagram below. These envelopes represent the maximum acceleration with bare table (no payload mounted) that can be achieved on the table.

Accelerations envelopes

Details

CS Q-LEAP™ SINE with APS 129

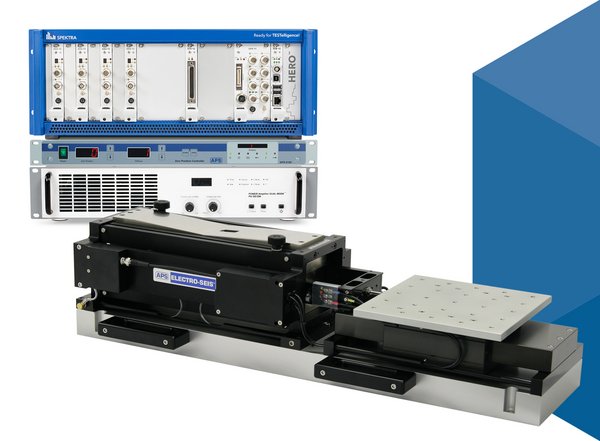

vibration calibration system with air bearing vibration exciter APS 129

This system allows calibration of heavy seismic sensors (seismometers) as well as geophones up to 200 Hz.

The CS Q-LEAP™ system is based on the HERO™ vibration controller and the APS 129 air bearing vibration exciter.
