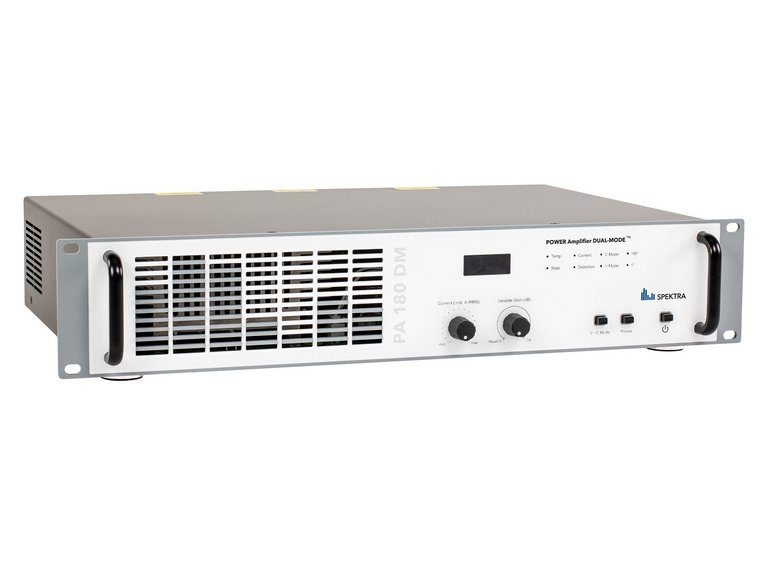

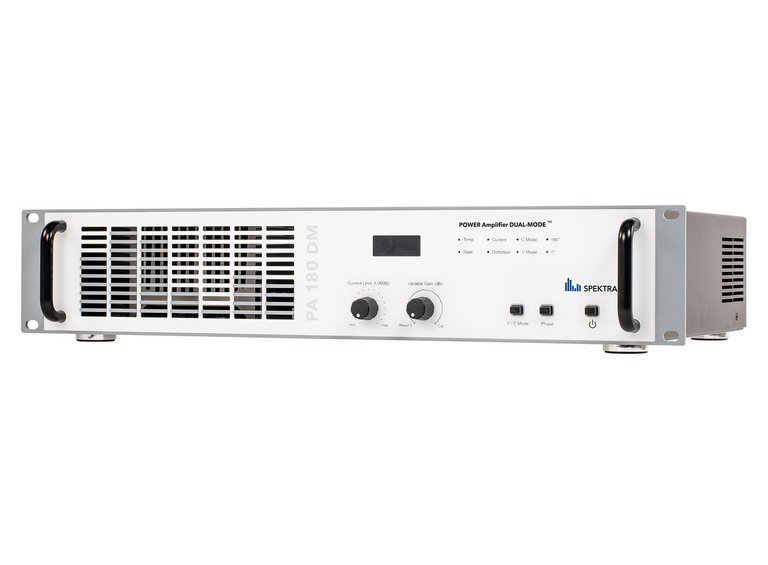

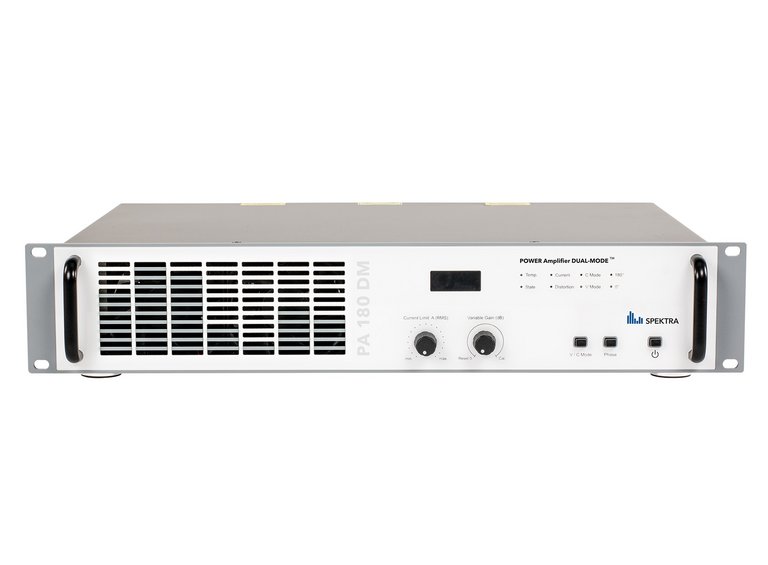

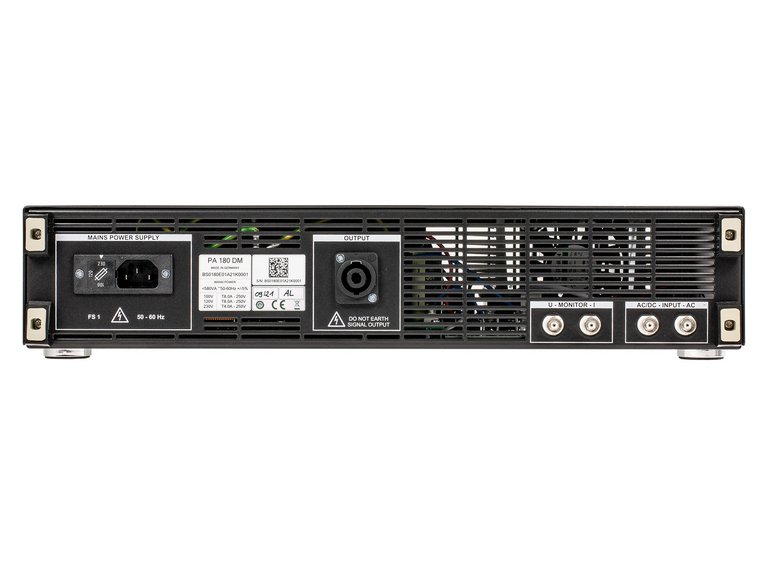

PA 180 DM

180 VA power amplifier

For all vibration exciters that require a 180 VA power amplifier (load impedance 0.8 Ω). The PA 180 DM offers a max. frequency range DC…100 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.

Datasheet

Key Features

Features

frequency range:
- 40 Hz … 20 kHz full power
- DC…100 kHz small signal
power output, max. 180 VA into a 0.8 Ω resistive load
high reliability operation
switch between voltage and current mode

phase shift (0° or 180°)
variable gain control
current limit control
temperature protection
multifunction OLED display

Applications

test and characterization
environmental testing systems
calibration systems
modal testing shakers

Range of use

research and development departments in industry
environment testing laboratories
calibration laboratories
universities and research institutes

Product details

_{For further details, please refer to the technical data sheet. Subject to change without notice.}

Similar products

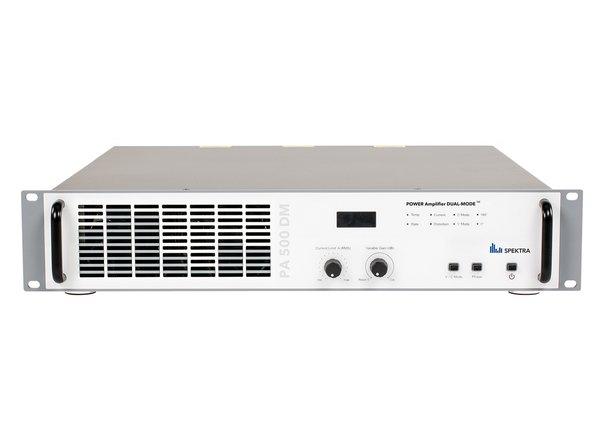

PA 500 DM
