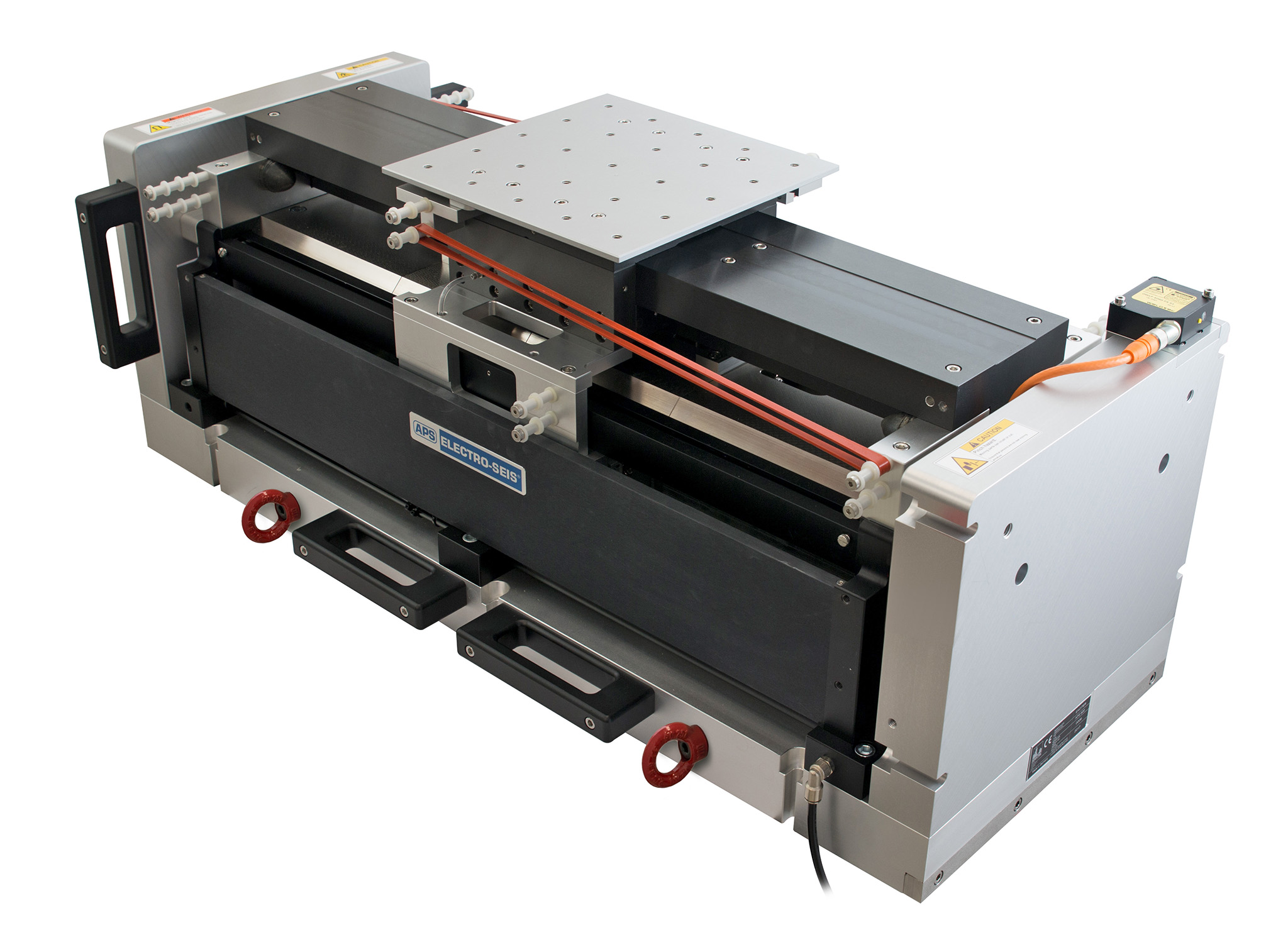

Air-bearing ELECTRO-SEIS® Long Stroke vibration exciter with mounting table for very high payloads. Especially developed for the calibration and testing of geophones and heavy seismic sensors.
- Force, max.: 215 N (48 lbf)
- Displacement, max.: 400 mm (peak-peak)
- Frequency Range: DC...50 Hz
- Payload, max.: 25 kg (55 lbs)
- Load table size: 254 mm × 254 mm
- Power amplifier
- Zero position controller
- System cables
For detailed information see current data sheet. Subject to change without notice.
The APS 0109 automatically controls the zero position of a vibration exciter irrespective of its load. It is essential to employ a position controller of type APS 0109 especially when working with an air-bearing vibration shaker without any integrated automatic load-compensation.
PA 500 DM
PA 500 DM
For all vibration exciters that require a 500 VA power amplifier (load impedance 4 Ω). The PA 500 DM offers a max. frequency range DC ... 200 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.
