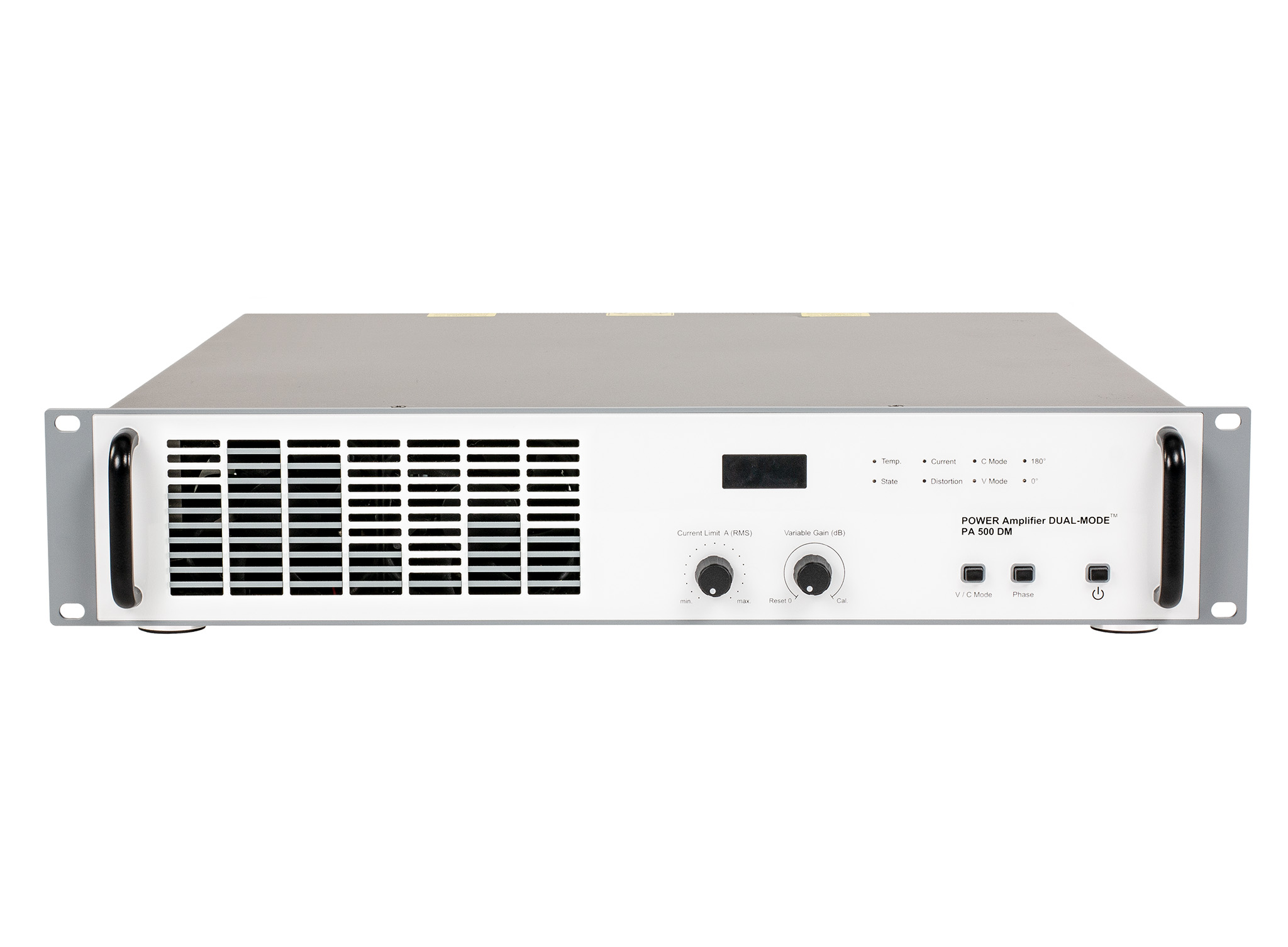

PA 500 DM

For all vibration exciters that require a 500 VA power amplifier (load impedance 4 Ω). The PA 500 DM offers a max. frequency range DC ... 200 kHz, small harmonic distortion, excellent stability even with temperature or supply line variations and helpful protection functions.

Downloads:

Features

  • frequency range DC ... 200 kHz
  • power output, max. 500 VA into a 4 Ω resistive load
  • high reliability operation
  • switch between voltage and current mode
  • phase shift (0° or 180°)
  • variable gain control
  • current limit control
  • temperature protection
  • multifunction OLED display

Applications

  • modal testing shakers
  • environmental testing systems
  • calibration systems

Range of Use

  • research and development departments in industry
  • environment testing laboratories
  • calibration laboratories
  • universities and research institutes
